The starter kit of the HOME charging technology set is intended for simple assembly of a charging station with a standard socket and charging mode Mode 3, Case B. The package contains only one supported charging point. The AC Basic charging control unit is already preconfigured.

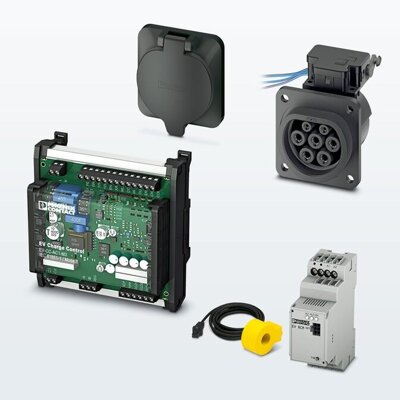

The HOME charging technology kit with AC infrastructure charging socket contains sample assembly and installation instructions for electromobility charging stations, including other recommendations. It also contains all the necessary components (including the charging contactor and safety devices).
The charging point is the charging socket of the AC infrastructure, which is equipped with a 12V blocking action element and an IP54 self-closing protective cap. The system is equipped with an integrated interlock actuator release function to disconnect the infrastructure charging connector and the infrastructure charging socket.
Installation and commissioning may only be carried out by electricians, who must observe the applicable national regulations!
Technical Specifications
- AC charging current type (3 phases)
- Charging power 11 kW
- Charging current 16 A
- Charging voltage 400 V AC
- Line length 0.70 m
- Blocking actuator along the entire length of the line 0.50 m
- 1-channel RCM differential leakage current module
The individual components of the HOME Charging Kit can be found here.
Security and certificates
The starter pack complies with the European specifications IEC 62196-2 and IEC 61851-1 for charging electric vehicles with a Type 2 connector. If required by law, the individual components are CE marked. The charging point is equipped with a protective cover with certified protection at the IP54 level.
The HOME Charging Kit comes with a standard 24 month warranty.
