The button is made of durable, damage-preventing material, has a long service life and lasts more than 50,000 switching cycles. It is equipped with protection at the IP67 level, thanks to which it is absolutely dustproof and waterproof and is therefore also suitable for outdoor use.

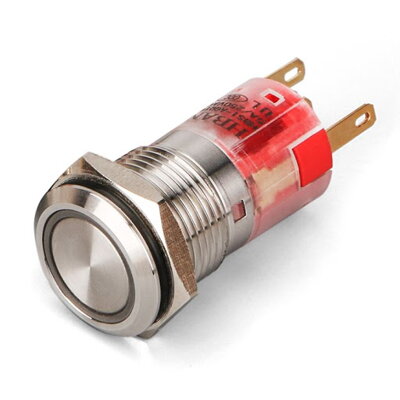

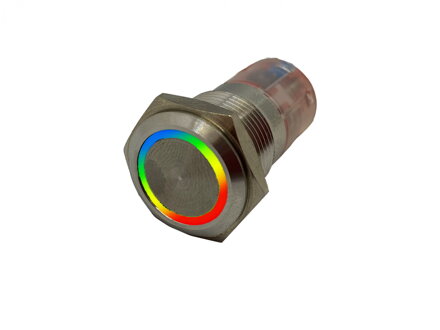

The front shape of the button is flat round with an LED ring. You can choose the backlight in red, green or blue or in any two or three combinations, which offers virtually unlimited possibilities.
Technical Specifications
- Mounting hole size: 16mm / 22mm
- Maximum contact load: 5A / 250VAC
- LED voltage: 3,3V / 24V
- Operating temperature range: -30 ° C to + 50 ° C
- Contact configuration: 1NO 1NC / 2NO 2NC
- Material: stainless steel, nickel-plated brass, black anodised aluminum
- Silver color with LED ring
Security and certificates
The button is equipped with a certified degree of protection IP67 and IK08.
The button has a standard 24 month warranty.
