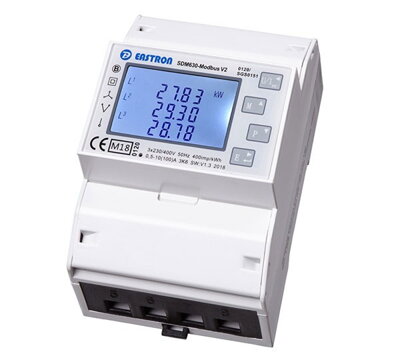

Featuring a wide range of measured parameters, including current, voltage, power, frequency, power factor, energy, harmonic distortion, and more, the EASTRON SDM630 Modbus V2 is ideal for monitoring energy consumption and analyzing data over time.
With high measurement accuracy of 0.5% and easy installation on a DIN rail, the EASTRON SDM630 Modbus V2 is a versatile choice for a variety of applications in industrial, commercial, and residential buildings. It meets CE, UL, and RoHS safety standards, ensuring reliability and safety during use. Use the EASTRON SDM630 Modbus V2 for efficient and cost-effective monitoring of electric energy consumption in your building.
Technical specifications
- Communication Protocol: Modbus RTU
- Power Supply Voltage: 90-600V AC
- Current Measurement Range: 0-100A AC
- Voltage Measurement Range: 0-600V AC
- Power Measurement Range: 0-60kW
- Energy Measurement Range: 0-999999.9 kWh
- Power Factor Measurement Range: -1 to 1
- Frequency Measurement Range: 45-65Hz
- Harmonic Distortion Measurement Range: THD (1-31)
- Measurement Accuracy: 0.5%
- Display: 3.2-inch LCD with blue backlight
- Interfaces: USB, RS485, Modbus RTU
- Operating Temperature: -10°C to 60°C
- Mounting: DIN rail
- Dimensions: 96 x 96 x 65 mm
- Weight: 0.4 kg
The EASTRON SDM630 Modbus V2 electric energy meter meets CE, UL, and RoHS safety standards.
