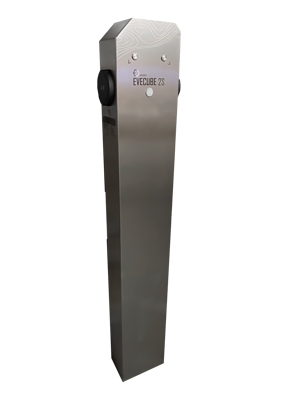

The EVECUBE 2C intelligent AC charging station is equipped with a smart WebServer connected to your local IP address, including a web application for easy remote control, statistics and its management. It allows to set the charging time, power and schedule, according to customer's tariffs. Just plug in the charger and it's ready to use.
The Webserver system were developed in the Czech Republic and represent an advanced and unrivaled solution. The extra module can monitor the total energy consumption of the household and limit the charging power accordingly, so that it does not exceed the nominal reserved power input. Another "power steering" module can monitor your total own energy consumption and limit the charging power accordingly, so that it does not exceed the reserved power.
The charging station EVECUBE were developed in the Czech Republic and represents an advanced and unrivaled solution. The module of Dynamic Load Management can monitor the total energy consumption of the household and limit the charging power accordingly so that it does not exceed the nominal reserved power input.
The AC charging station EVECUBE are equipped with protective elements that ensure the complete safety of the car. The most important of these is the built-in Type B circuit breaker and RCD (FI) A-EV residual current device with 6mA DC current detection. This makes installation simple and saves considerable costs, as there is no need to add additional protective elements.
Thanks to the extremely strong steel construction, the charging station is additionally protected against mechanical damage and contamination.
At the charging station, it is possible to change the charging current setting between 6A, 10A, 13A, 16A, 20A, 25A and 32A. The maximum charging power is 22 kW. The total charging time depends on the on-board charger of each electric car.
Orders, processing, and delivery times take approximately 4 - 6 weeks!
The manual can be downloaded here.
Technical Specifications
- Connection:
- integrated socket Duosida Type 2 female (1-2x)
- integrated charging cable Type 2 with a length of 5 or 8 meters (1-2x)
- IP44 protection
- Maximum current: 32A (1 - 3 phases)
- Maximum voltage: 400V
- Maximum charging power: 1 port - 22KW / 2 ports - 2x22 kW
- Drawer lock: Yes
- Communication: Yes
- OCPP 1.6: No
- Authorization: Smart WebServer, RFID
- Electricity meter: Yes (invoicing)
- Operating temperature range: -20 C to +50 C
- Dimensions of column: 1300 x 200 x 150 mm
- Weight: 16-17 kgs (with socket/sockets) 20-23 kgs (with cable/cables)
- Color: brushed stainless steel
All EVECUBE 22kW charging stations are tested to ensure their safety. Testing takes place individually. The protection box is certified at the IP44 level. Evecube meets the international standards IEC 61851-1 and IEC 62196-2. In the European Union, the charging station is certified by CE and TUV.
The charging station has an superior 60-month warranty!
