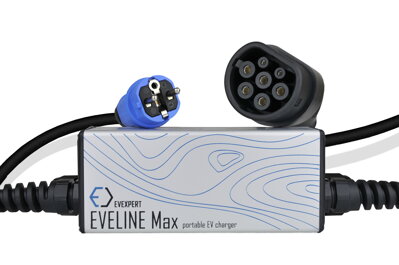

The Eveline smart portable charger is suitable for cars that have access to schuko home sockets. The driver can determine the current with which the car will be charged. It is possible to change the setting between 6A, 10A, 13A and 16A by using the button on the side of the charger.
The solution of this "cable charger" combines user friendliness with top security. Although it is the smallest design on the market, it is capable of charging electric vehicle with 3,6kW, the switching elements are dimensioned for more than 150% of the nominal continuous load. In addition, the cable's control electronics perform diagnostics each time they are connected, and if something is wrong, they signal the problem with the appropriate error code.
The charger is equipped with protective elements that ensure complete safety of the car and crew. The most important of these is the built-in Type B circuit breaker and the RCD (FI) A-EV residual current device with 6mA DC current detection, which ensures immediate interruption in the event of incorrect charging. Furthermore, it is 100% waterproof and resistant to all weather conditions.
The intelligent charger is equipped with a Duosida cable in lengths of 5m, thanks to which it can meet all needs. When handling the cable, protective caps should be used each time when the cable is not connected. After use, it is necessary to wind the cable correctly and then insert the cable into the bag. This significantly (!) increases its service life.
You will receive a bag with every purchase of a charger as a gift. It is also possible to order a wall holder for easier storage.
Technical Specifications
- Type 2 plug - (mennekes) (electric car)
- Socket type Schuko (mains)
- IP44 and IP65 protection
- Maximum current: 16A
- Maximum voltage: 250V (1 phase)
- Maximum charging power: 3,6 kW
- Operating temperature range: -40 ° C to 50 ° C
- Charger size: 180x80x50mm
- Cable length: 5 meters (Duosida)
- Color of the charger: black, silver
Detailed technical information and multilingual manual can be downloaded here.
Security and certificates
All charging cables are tested to ensure their safety. The protective cover is IP44 certified. The connector in the disconnected state is protected at the IP65 level. The Eveline charger meets the international standards IEC 61851-1 and IEC 62196-2 16A. It is certified with CE and TUV for use in the European Union.
The smart charger has a standard warranty of 36 months from 2023.
