MADE IN CZECH OPEN BOX BLACK FRIDAY

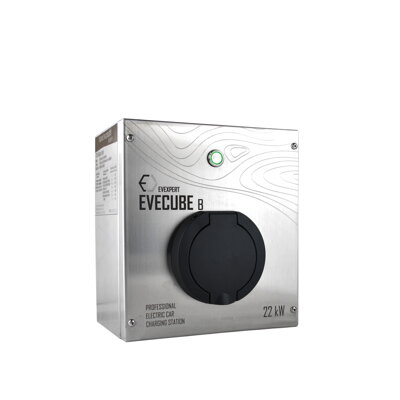

The EVECUBE B home charging station is made of high-quality anti-corrosion stainless steel in a compact size for charging all electric cars and hybrids with an output from 3.7 kW to 22 kW. Thanks to its durability and size, it is suitable for public and private spaces. It can be ordered with a socket or with an integrated cable. The warranty for this station can be up to 5 years!

807,50 € incl. VAT

667,36 €

950 € incl. VAT Discount 15%

Ask without obligation

Add to Favourites

Add to list

You need to login first

Product question

Watchdog

You need to login first

Availability and price: In stock

Producer: EV Expert

Product rating: 5/5 (2x)

Your rating:

More from category

Charging with the 22kW AC home charging station is up to 5 times faster than charging from a standard SCHUKO socket. It is possible to change the charging current setting between 6A, 10A, 13A, 16A, 20A, 25A and 32A. The maximum charging power is 22 kW. The total charging time depends on the onboard charger of each electric car.

The EVECUBE B charging station is developed in the Czech Republic and represents an advanced solution for both home charging. Control is simple and intuitive. When placed in a public place, the station is equipped with a socket lock to prevent the cable from being stolen. Thanks to the extremely strong steel construction, the charging station is additionally protected against mechanical damage and contamination.

The charging station monitors important information about the charging status, such as total time, power, temperature and voltage, and interrupts charging if the maximum safe values ​​are exceeded. The charger is equipped with protective elements that ensure complete safety of the car. The most important of these is the built-in Type B circuit breaker and the RCD (FI) A-EV residual current device with 6mA DC current detection.

If the article is not On stock, than all orders, processing and delivery times are beetween 1 - 2 weeks.

The charging station can be requested with a socket or with an integrated cable, with a pole or for wall mounting itself, according to the needs of each customer.

The manual can be downloaded here.

Technical Specifications

  • Connection:
    • integrated socket Duosida Type 2 female
    • integrated premium EV Expert coiled charging cable Type 2 with a length of 5 or 8 meters
  • IP44 protection
  • Maximum current: 32A (1 - 3 phases)
  • Maximum voltage: 400V
  • Maximum charging power: 22 kW
  • Drawer lock: Yes
  • OCPP: No.
  • Charging status information: Yes
  • Electricity meter: No.
  • Operating temperature range: -20 C to +50 C
  • Dimensions: 220 x 200 x 120 mm (smallest charging station on the market)
  • Cable length: 5 or 8 meters
  • Weight: 3,7kg
  • Color / Material: brushed stainless steel

Security and certificates

All EVECUBE 22kW home charging stations are tested to ensure their safety. Testing takes place individually. The protection box is certified at the IP44 level. EVECUBE meets the international standards IEC 61851-1 and IEC 62196-2 32A. In the European Union, the charging station is certified by CE and TUV.

This charging station can be covered by a superior warranty of up to 5 years. For more information, click here.

If you have any questions about the EVECUBE charging station, do not hesitate to contact us.
